Introducing AWS Resources View

Ron Eliahu

Ron Eliahu

As of the writing of this blog, CloudQuery supports over 155 resources across 61 services in AWS (!) and many more in GCP, Azure, etc. Although this gives users the capabilities to answer many of their questions regarding your security, visibility and infrastructure, it would be great to have a single view of all your AWS resources, right?
So here at CloudQuery we built a simple aws_resources view, to demonstrate the power of using a SQL database to create a single pane for all your fetched AWS resources. The aws_resources view allows us to ask questions on all our resources allowing us to filter by service, region, account and more!

Getting Started #

As always, before we create this view, you should check out our quickstart guide, and make sure you execute a sync.
After our AWS provider is set up and we executed our sync, run the following SQL in your database. This statement creates a view that extracts and transform each row in our aws tables with an arn column into a aws_resource form, and unites all of them rows into our singular view.
DROP VIEW IF EXISTS aws_resources;

DO $$
DECLARE
    tbl TEXT;
    strSQL TEXT = '';
BEGIN
-- iterate over every table in our information_schema that has an `arn` column available
FOR tbl IN
    SELECT DISTINCT table_name
    FROM information_schema.columns
    WHERE table_name LIKE 'aws_%s' and COLUMN_NAME IN ('account_id', 'request_account_id')
    INTERSECT
    SELECT table_name
    FROM information_schema.columns
    WHERE table_name LIKE 'aws_%s' and COLUMN_NAME = 'arn'
LOOP
    -- UNION each table query to create one view
  IF NOT (strSQL = ''::TEXT) THEN
  strSQL = strSQL || ' UNION ALL ';
 END IF;
 -- create an SQL query to select from table and transform it into our resources view schema
 strSQL = strSQL || FORMAT(E'
        SELECT _cq_id,
            _cq_source_name,
            _cq_sync_time,
            %L AS _cq_table,
            COALESCE(%s, SPLIT_PART(arn, \':\', 5)) AS account_id,
            COALESCE(%s, %s, SPLIT_PART(arn, \':\', 5)) AS request_account_id,
            %s AS region,
            SPLIT_PART(arn, \':\', 2) AS PARTITION,
            SPLIT_PART(arn, \':\', 3) AS service,
            CASE
            WHEN SPLIT_PART(SPLIT_PART(ARN, \':\', 6), \'/\', 2) = \'\' AND SPLIT_PART(arn, \':\', 7) = \'\' THEN NULL
                ELSE SPLIT_PART(SPLIT_PART(arn, \':\', 6), \'/\', 1)
            END AS TYPE,
            arn, %s AS tags
        FROM %s',
        tbl,
        CASE WHEN EXISTS (SELECT 1 FROM information_schema.columns WHERE column_name='account_id' AND table_name=tbl) THEN 'account_id' ELSE 'NULL' END,
        CASE WHEN EXISTS (SELECT 1 FROM information_schema.columns WHERE column_name='request_account_id' AND table_name=tbl) THEN 'request_account_id' ELSE 'NULL' END,
        CASE WHEN EXISTS (SELECT 1 FROM information_schema.columns WHERE column_name='account_id' AND table_name=tbl) THEN 'account_id' ELSE 'NULL' END,
        CASE WHEN EXISTS (SELECT 1 FROM information_schema.columns WHERE column_name='region' AND table_name=tbl) THEN 'region' ELSE E'\'unavailable\'' END,
        CASE WHEN EXISTS (SELECT 1 FROM information_schema.columns WHERE column_name='tags' AND table_name=tbl) THEN 'tags' ELSE '''{}''::jsonb' END,
        tbl);
END LOOP;

IF strSQL = ''::TEXT THEN
    RAISE EXCEPTION 'No tables found with ARN and ACCOUNT_ID columns. Run a sync first and try again.';
ELSE
 EXECUTE FORMAT('CREATE VIEW aws_resources AS (%s)', strSQL);
END IF;

END $$;
Up to date version of this query can be found here.

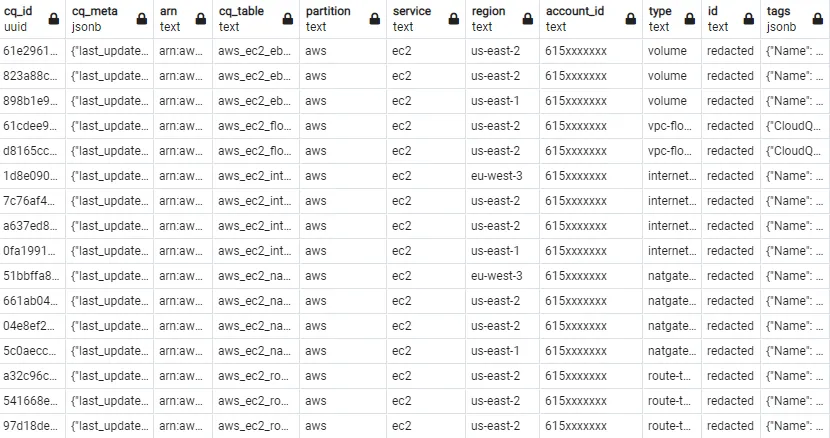

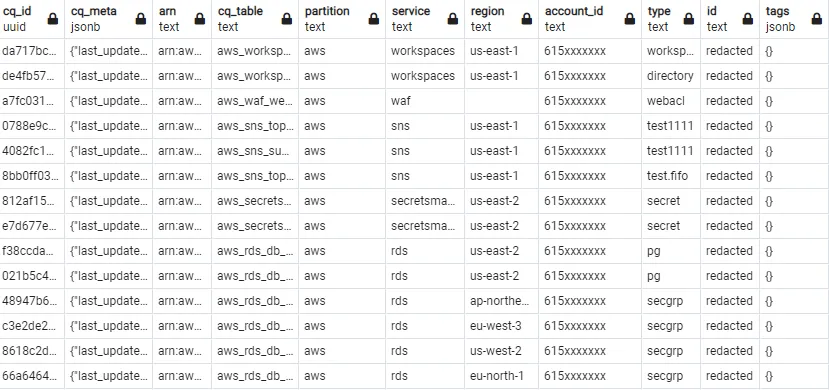

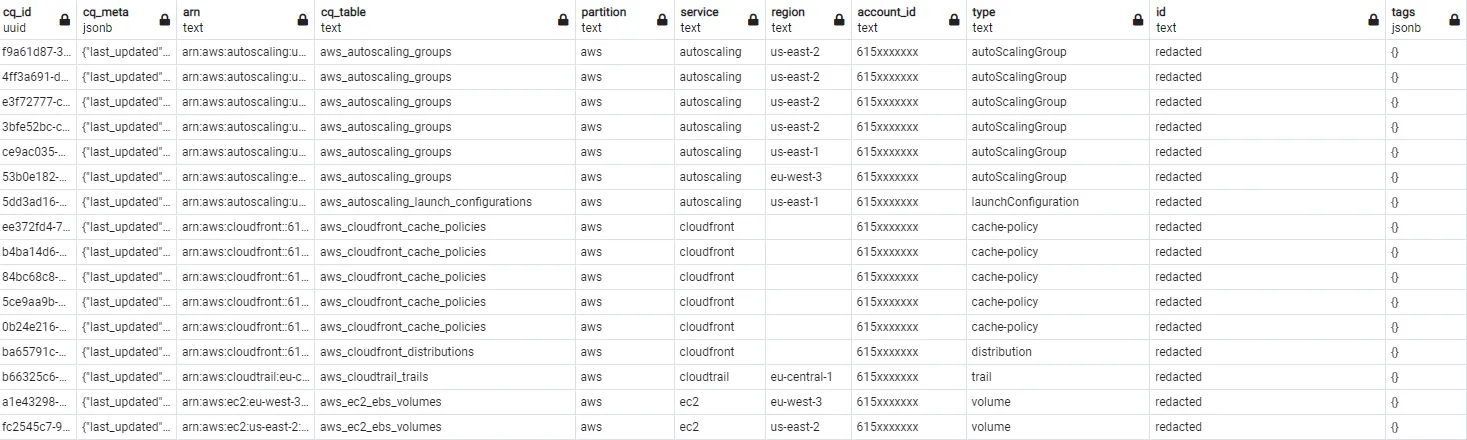

Run the following query to view all your AWS resources #

select * from aws_resources limit 100;

Example Queries #

What resources don’t have tags? #

select * from aws_resources where tags = '{}';

What resources don’t have any of these tags? #

select * from aws_resources where not tags ?| array['name', 'version'];
We can easily invert this or make sure that all of these tags exist with the ?& operator instead.

What resources of Type Z in service X exist in Region Y? #

SELECT * FROM aws_resources WHERE region LIKE 'us-east%'
AND service = 'ec2' AND (type = 'instance' OR type = 'network-interface');
Here we can easily query all resources in the ec2 service from the us-east regions, that they are of type instance and network-interface

Join To existing tables #

SELECT instance_type, aws_resources.id, aws_resources.arn, launch_time,
 public_ip_address, private_ip_address, state_name, vpc_id FROM aws_resources
INNER JOIN aws_ec2_instances ON aws_resources.cq_id = aws_ec2_instances.cq_id
WHERE aws_resources.region LIKE 'us-east%' AND aws_resources.service = 'ec2' AND aws_resources.type = 'instance' AND aws_resources.tags = '{}'
We can easily create join to our existing tables to get more information, we can join either on the cq_id or event the id column. This allows to get more specific information on the resources,
in this case, launch_time, public_ip_address, vpc_id etc’.

Count total distinct resources by ARN #

select count(distinct arn) as distinct_resources, count(*) as total from aws_resources

What's next? #

There are many views we can create on top of CloudQuery that make it easier to query our data, some examples can be found in our policies. We are working on more awesome views that will make your life even easier, such as aws_policies
We are always excited to hear use cases or questions around CloudQuery so feel free to hop into our Community and let us know.
Ready to dive deeper? Contact CloudQuery here or join the CloudQuery Community to connect with other users and experts. You can also try out CloudQuery locally with our quick start guide or explore the CloudQuery Platform (currently in beta) for a more scalable solution.
Want help getting started? Join the CloudQuery community to connect with other users and experts, or message our team directly here if you have any questions.
